LED Roll-up LED Display

LED Roll-up Display
K-MAT Series

KinglyLED's products have passed multiple authoritative qualification certifications. We provide a one-stop solution for your project and can also offer customized solutions according to your needs,Available in Pixel Pitch: 0.78mm/0.976/1.25mm/ 1.56mm/ 1.95mm/2.6mm/3.91mm

LED roller screens adopt flexible and lightweight lamp panels, supporting automatic electric rolling for storage. They feature light weight for easy transportation and installation. Boasting high-definition display, flexible shaping and modular design for convenient maintenance, the products are widely applied to stages, exhibitions, mall window displays, indoor lecture halls, architectural lighting and other scenarios. Balancing aesthetics, practicality and portability, they serve as an innovative commercial display solution.

Get Quote Now
Specs Download
Rollable LED Display
Rolling LED Displays

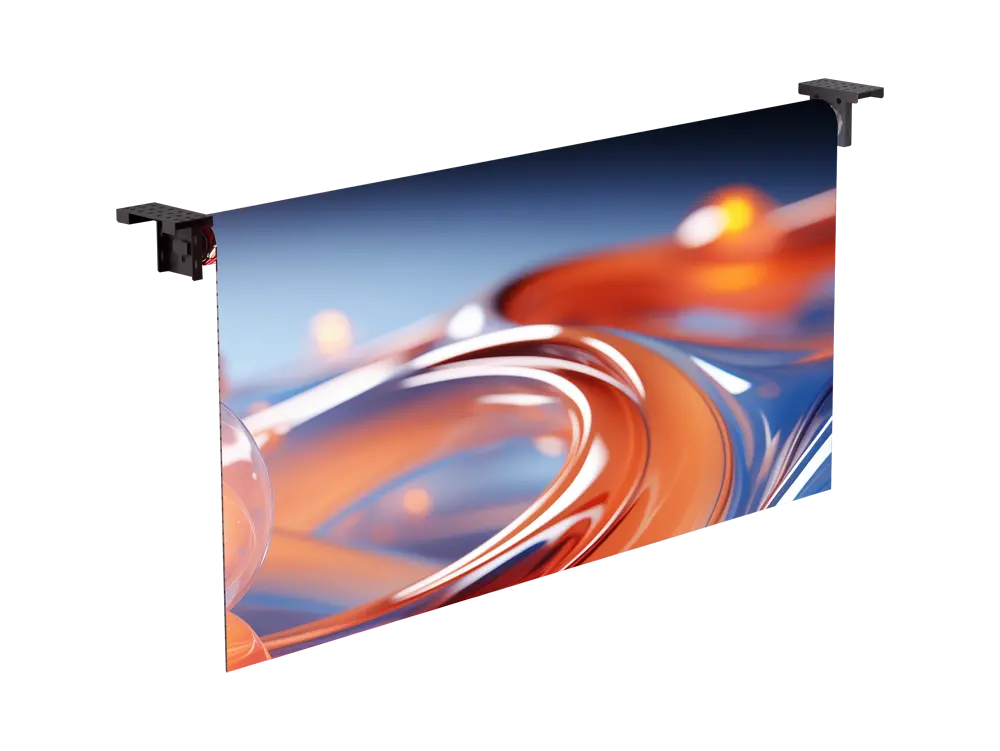

LED Roll-up Displays

Black

Extraordinary deep blacks

Excellence

Capture every brilliance

Thickness Only 17mm

Ultra-Thin and Ultra-Light

Cool

Stay cool, enjoy more

Fast installation

Easy maintenance

Energy-saving

Energy-saving

Less consumption

EMC Class B Standard

Safe choice

Rollable

Roll up for concealed storage while idle.

Excellent Design

  • Support customization
  • High-definition display,the minimum pixel spacing supports 0.78mm
  • Reel design,when not in use, it can be rolled up and hidden

Feature Intro

  • Ultra-light  and Ultra-thin(thickness: 17mm)
  • DC24-48V input, safety usage
  • High-end DOB solution, big viewing angle
  • Exquisite shape and foldable, small storage spaces
  • No need support bases, lay down the ground directly
  • Seamless splicing, no screw holes on the surface of module, and exquisite structure
  • 1000kg/m² load capacity
  • Built-in interactive chip, sensing speed 0.016s

Multiple Installation Methods
Flexible Installation

K-MAT series products offer a variety of installation methods, featuring flexible and convenient installation. These methods include ceiling fixed installation, floor tile installation, truss rental mobile installation,hanging, truss installation,Fast rental with a frame installation and tripod installation, which can easily meet the needs of various application scenarios.

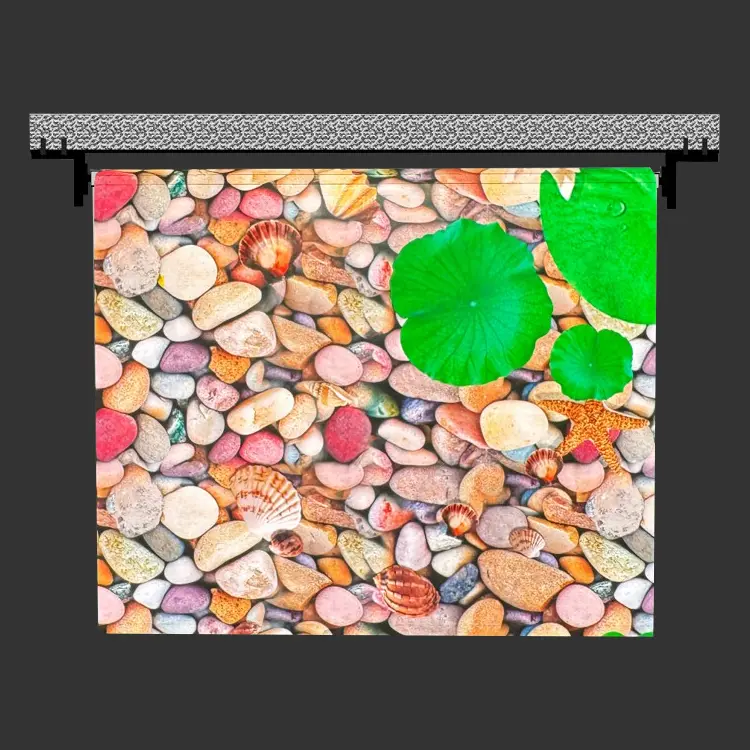

Ceiling Mounting

Ceiling Mounting

LED Roll-up display screen,ceiling mounted for space-saving advertising

Get Quote Now

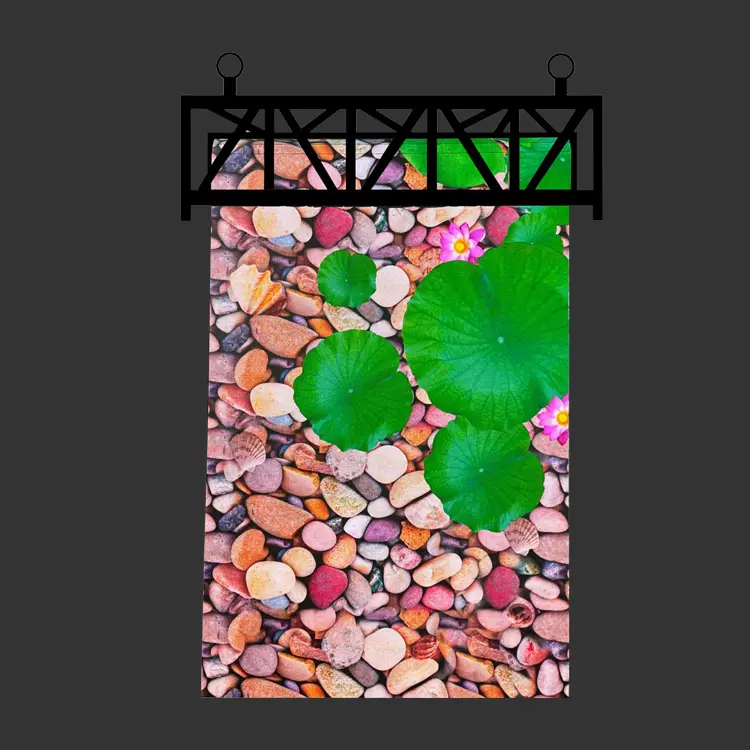

For Indoor Rental

For Indoor Rental

Adapt to diverse scenario,Flexible installation,Quick assembly and disassembly, high utilization rate

Get Quote Now

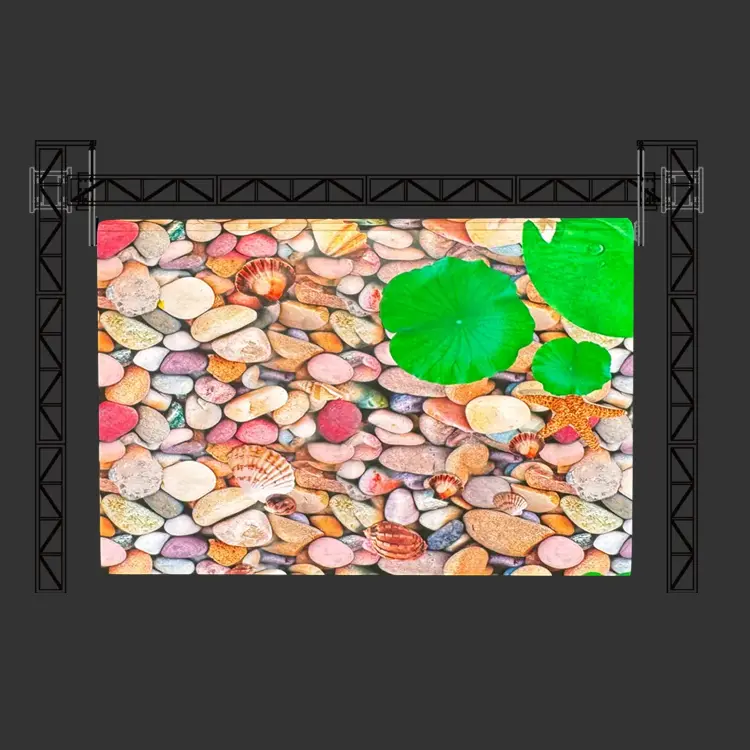

Truss installation

Truss installation

The special reel bracket is directly connected to the row frame, and the contact force is evenly distributed

Get Quote Now

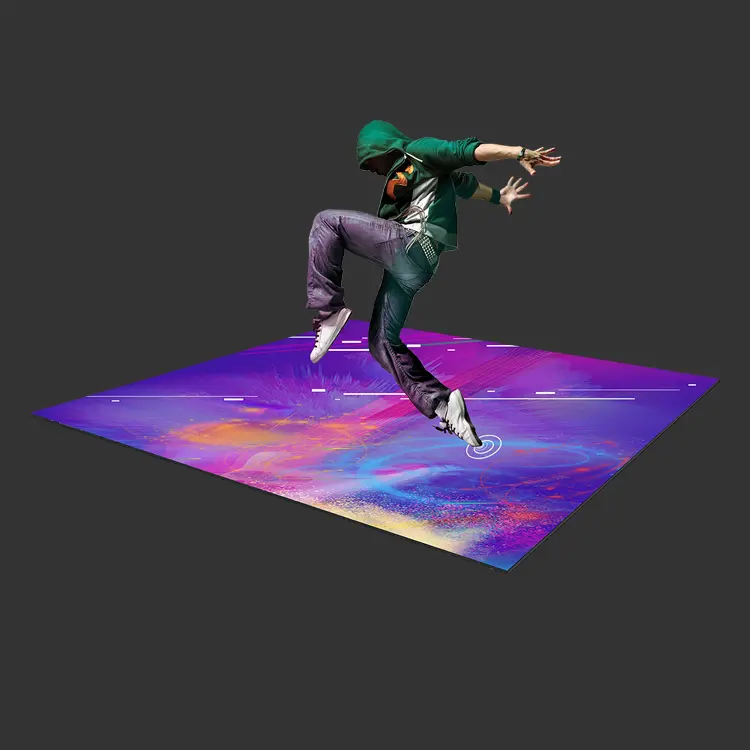

For LED Floor

For LED Floor

No need install structures,more reliable load-bearing,easy and fast installation and maintenance

Get Quote Now

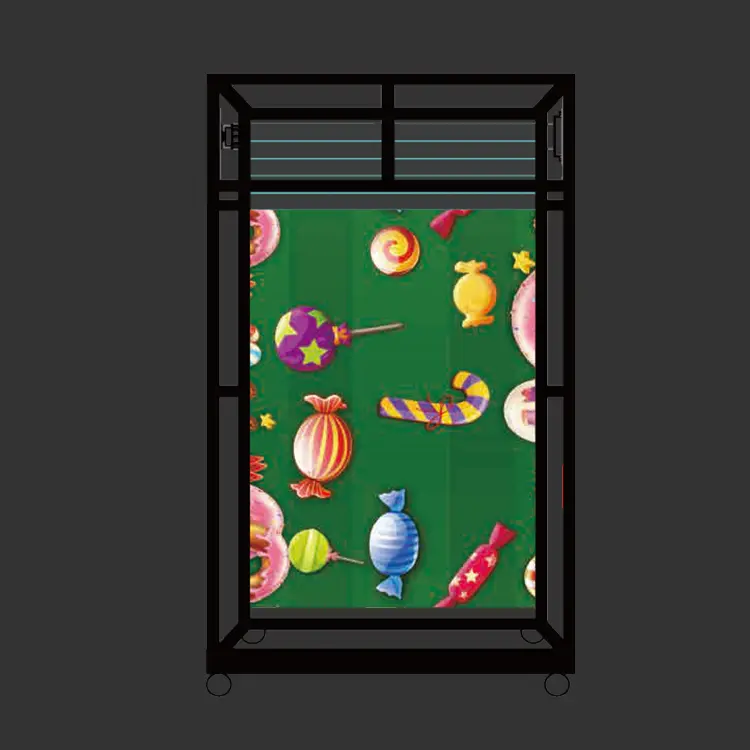

For Mobile Truss Rentals

For Mobile Truss Rentals

Portable truss system, flexible rental service, quick on-site mobile assembly.

Get Quote Now

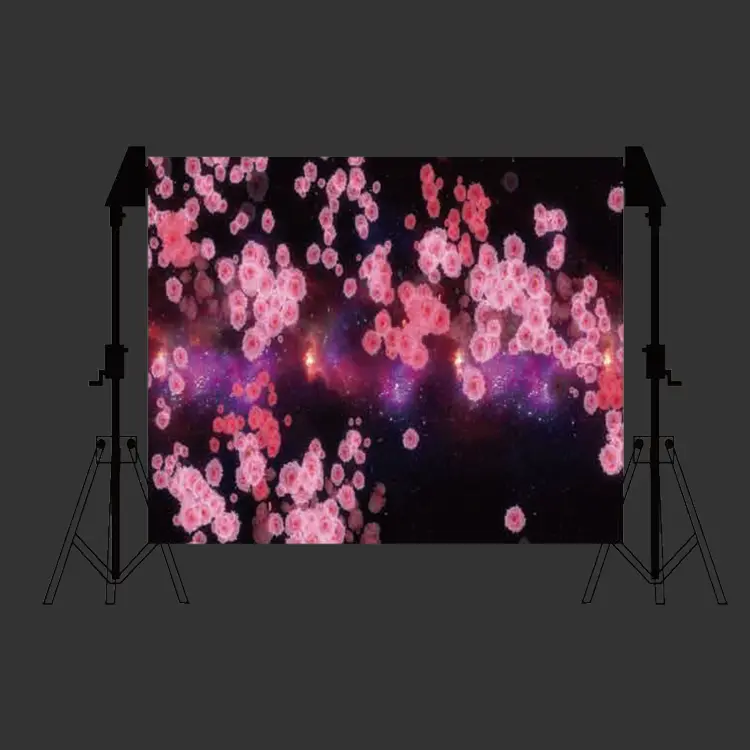

Tripod installation

Tripod installation

Fully space utilization,fine structure does not take up space,high mobility and flexibility

Get Quote Now

Easy Installation and Maintenance

Creative Flexible series LED display installation and maintenance are simple and convenient from front or rear, no professinal skill is needed, save maintenance time and cost.

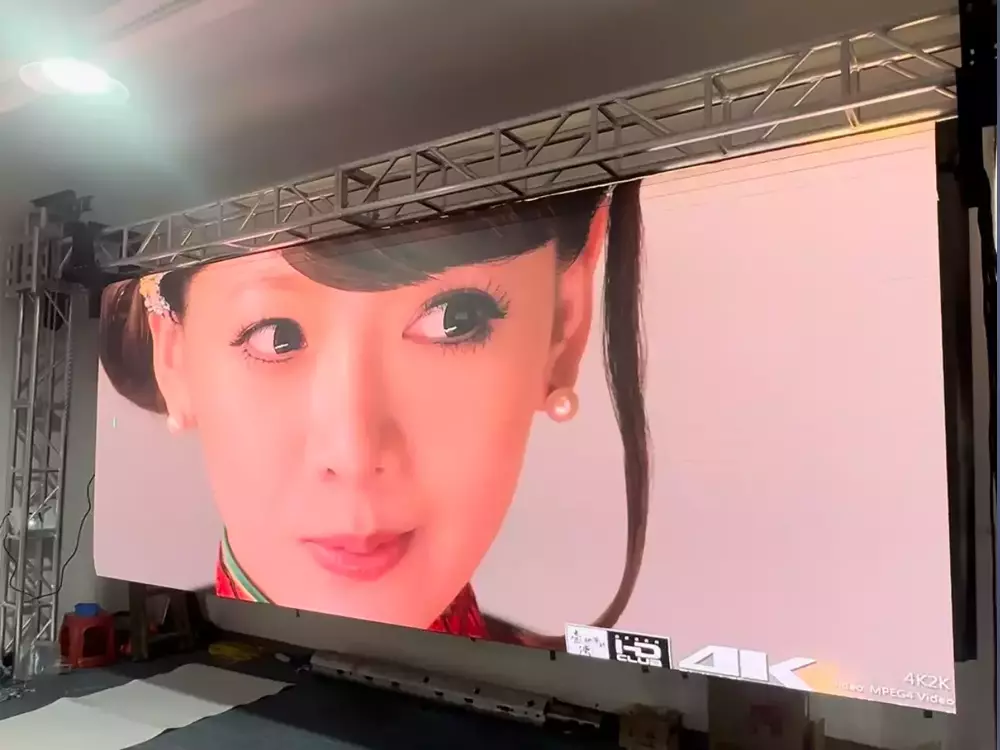

Indoor LED Roll up display
Indoor LED Roll up display
Indoor Rolling LED Screen, Installed on Ceilings or Trusses

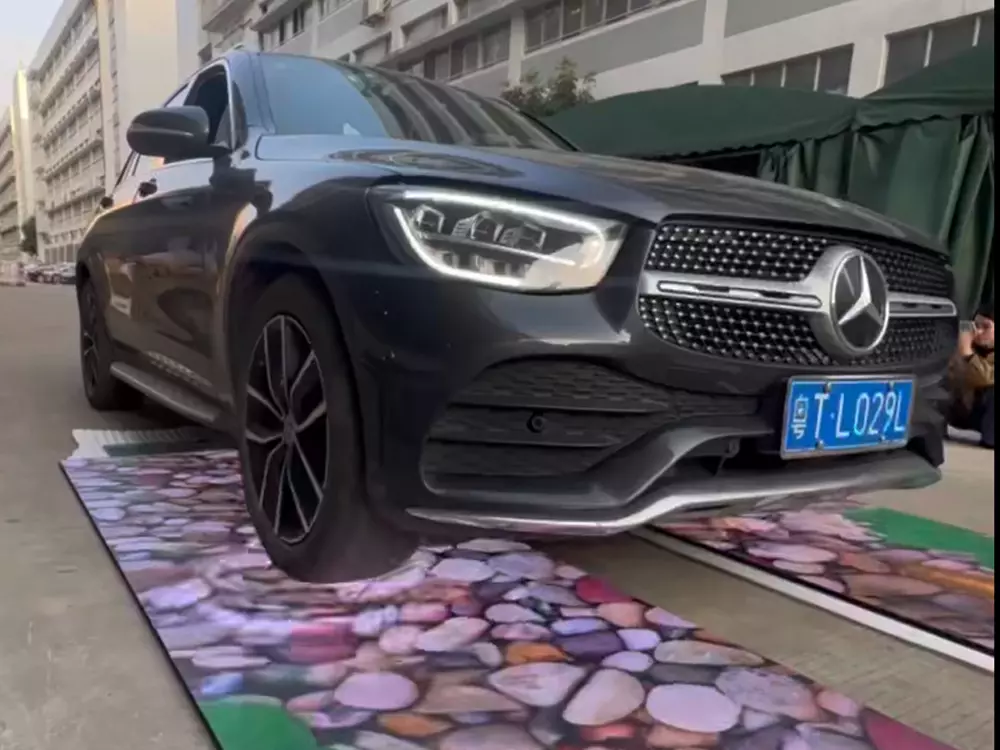

For LED Video Floor
For LED Video Floor
Indoor and outdoor Rollable LED Screen for LED Floor

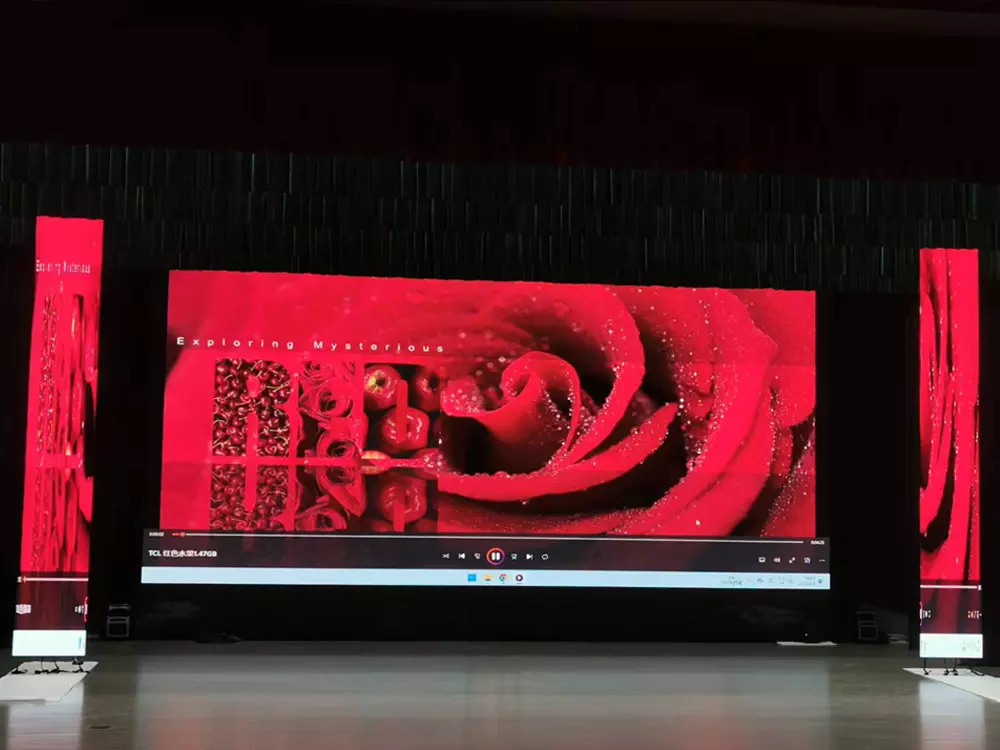

For Stage Rental Events
For Stage Rental Events
ollable LED Screen for Indoor and outdoor stage and rental events

LED Roll-Up Display
Patent

KinglyLED will obtain the professional certificate of LED Roll Up display invention in August 2025

Viewing Angle

140°/ 140° visual range,providing more fleixble and wider viewing experiences which ensures the efficiency and quality of information transmission.

K-MAT SERIES PARAMETER TABLE

  Model No. M0078 M0097 M0125 M0156 M0195 M0026 M0391
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)
  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
