Indoor KD

Indoor LED Floor KD Series

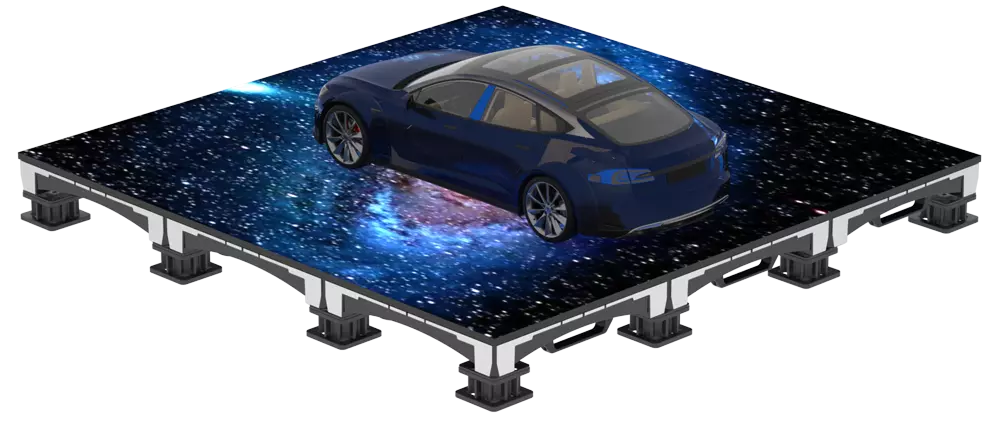

LED video floor is a display technology used to create dynamic, high-quality visual experiences on floor surfaces. Composed of LED panels designed to withstand stepping and interaction, it is highly suitable for events, exhibitions, retail environments, and entertainment venues. These floors can display videos, graphics, animations, and interactive content in real time.

Load-Bearing

Extreme Load Capacity: 2000kg

Excellence

Capture every brilliance

Anti-Glare Matte

Anti-Glare Matte

Good display effect

Scratch-Resistant

DOB technology, scratch resistant

IP Rating

Front: IP54, Rear:IP45

Real-time multi-touch

Excellent interactive effect

EMC Class B Standard

Safe choice

Anti-slip Surface

Surface anti slip technology, safe

Excellent Anti Slip and Safety Performance

The surface adopts DOB film lamination technology or is covered with a thickened, wear-resistant and non-slip acrylic panel (usually with a thickness of 15-25mm or more). The interior features a high-strength aluminum alloy cabinet or a reinforced structure, ensuring it can withstand the pressure from adults jumping, dancing, and even the passage of small vehicles.

Available XR Solution

KD Plus can be installed on both ground and vertical screens, seamlessly integrating to achieve the perfect XR application effect

Quick and Easy Assembly

LED floor tile screens are not only an innovation in display technology, but also a construction tool for digital experience spaces. They seamlessly connect physical spaces with digital content, creating dynamic environments full of fun and immersion through "foot" interaction, and have become a key development trend in the current fields of new retail, new media art, and performance technology.

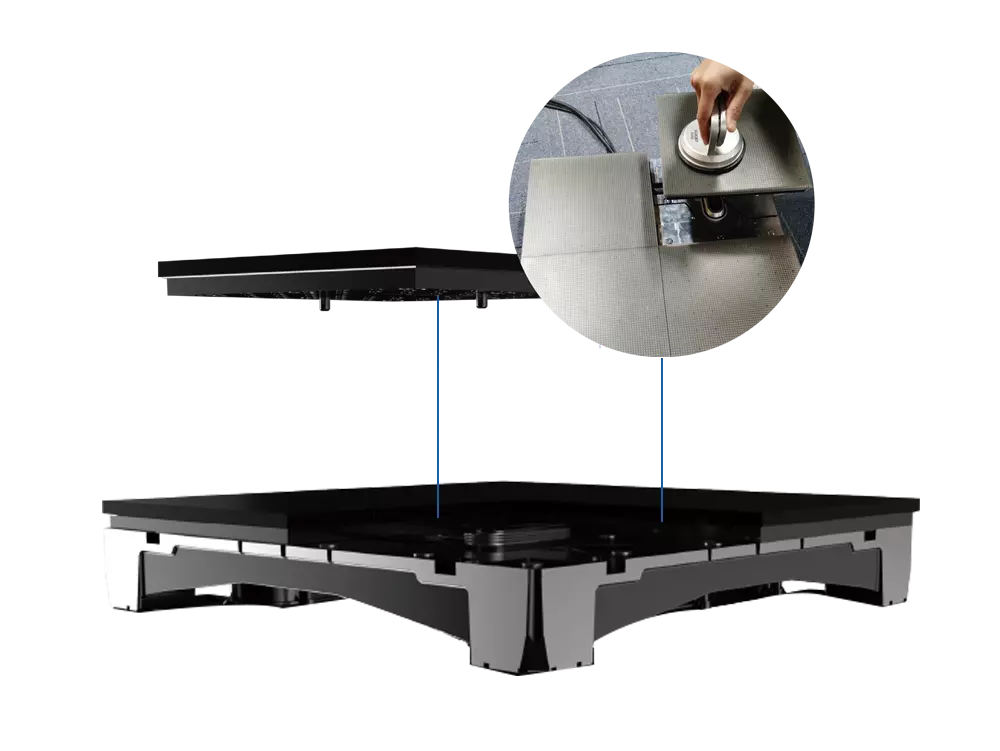

Modular Design,Front Maintenance

The modular design facilitates quick replacement of faulty units and front maintenance, enabling convenient and time-saving operation with high efficiency.

Power Supply and Card Support
Dual Backup

Power Supply and Card Support Dual Backup Design(optional)，More stable and safety for your projects

Indoor KD Plus Series
Parameter Table

  Model No. KD PLUS 0125 KD PLUS 0126 KD PLUS 0129 KD PLUS 0139 KD PLUS 0149 KD PLUS 0152 KD PLUE 0162
  Pixel Pitch(mm) 2.5mm 2.6mm 2.976mm 3.91mm 4.81mm 5.2mm 6.25mm
  LED Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
  Pixel density(dots/m²) 160,000 147,576 112,896 65,536 43,264 36,864 25,600
  Module resolution 100x100 96x96 84x84 64x64 52x52 48x48 40x40
  Module Dimensions(WxHxD)(mm) 250.85x250.85x18 250.85x250.85x18 249.8x249.8x18 249.8x249.8x18 249.6x249.6x18 249.6x249.6x18 249.4x249.4x18
  Brightness(cd/m²) 1200 1200 1200 1200 1200 1200 1200
  Max./Avg. Power Consumption(w) 200/100 200/100 200/100 200/100 200/100 200/100 200/100
  Viewing Angle
150°/150°
  Moudle size（mm）
500x500x78
  Maximum load bearing
1500kg/m²
  Refresh rate
1920-7680Hz(optional)
  Protection level
IP54/IP45
Swipe left or right to view more content

High Contrast and Clarity

To ensure clear visibility both under indoor lighting and outdoor sunlight, we have not only enhanced the brightness but also improved the contrast ratio through patented technology, guaranteeing sharp images and rich colors that are suitable for various lighting conditions.
