Outdoor KD Plus

Outdoor LED Floor KD PLUS Series

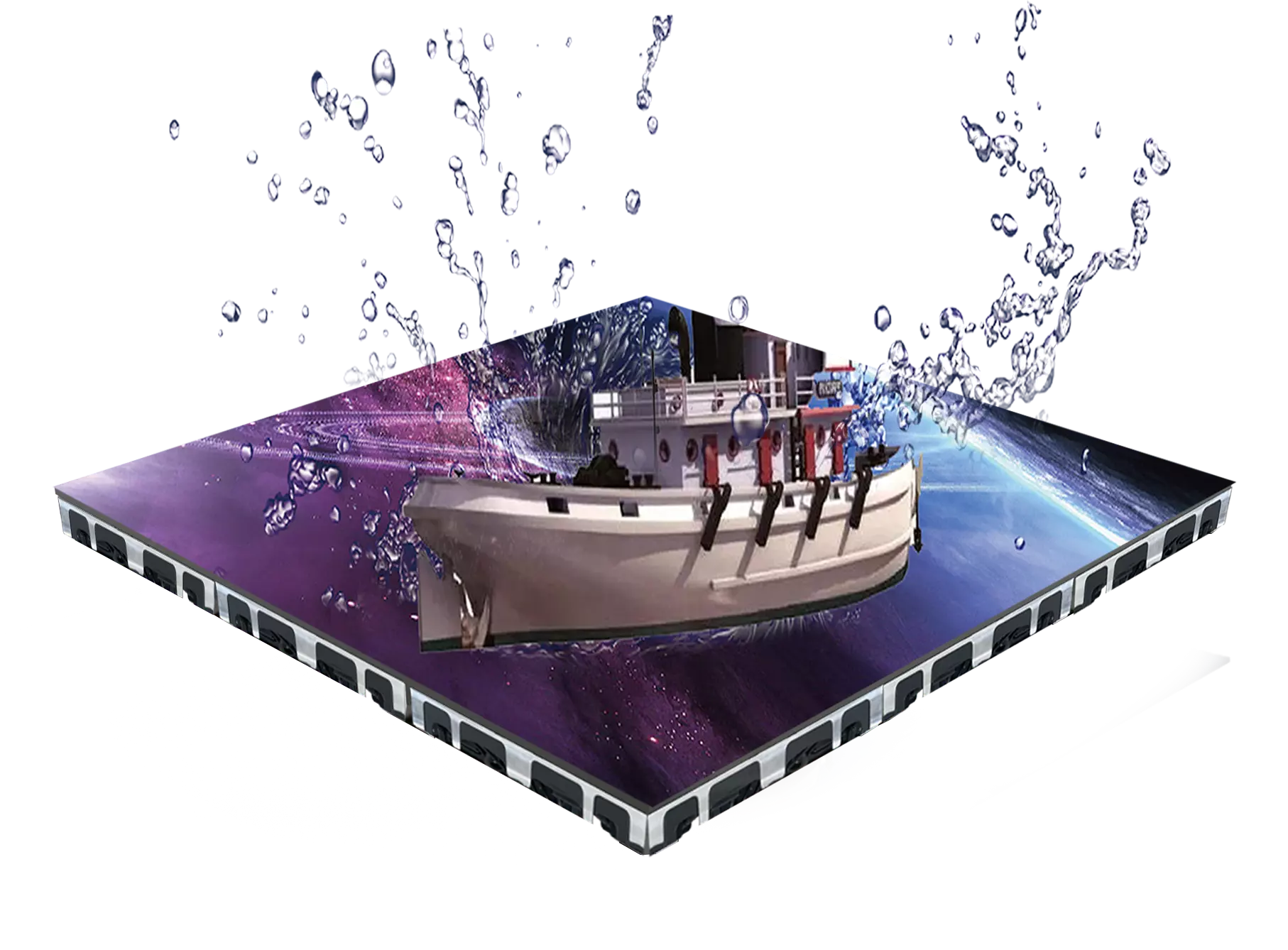

Interactive LED Video Floor is a digital floor display device that integrates high-definition video playback and real-time human-computer interaction, creating immersive visual experiences through motion sensing technology.

Load-Bearing

Extreme Load Capacity: 2000kg

Excellence

Capture every brilliance

Anti-Glare Matte

Anti-Glare Matte

Good display effect

Scratch-Resistant

DOB technology, scratch resistant

IP Rating

IP67

Real-time multi-touch

Excellent interactive effect

EMC Class B Standard

Safe choice

Anti-slip Surface

Surface anti slip technology, safe

Feature Introduction

  • LED Display Module: Uses high-brightness, high-definition LED lamp beads (common pixel pitches include P3.91, P4.81) to ensure clear visuals even in bright environments.
  • Motion Sensing System: Adopts radar, infrared, or pressure sensors to capture human movements (e.g., stepping, sliding) with a response time as fast as 0.015ms.
  • Main Controller: Processes motion data in real time, links it to pre-set visual effects, and sends signals to the display module.
  • Protective structure: The surface treated with DOB technology has a high protection level, with a load-bearing capacity of 1.5-2 tons per square meter, and a waterproof, dustproof, and scratch resistant protection level of IP67.

Excellent Anti Slip and Safety Performance

The surface must undergo anti-slip treatment (such as sandblasting, etching, or applying an anti-slip coating) to prevent pedestrians from slipping.

Available XR Solution

KD Plus can be installed on both ground and vertical screens, seamlessly integrating to achieve the perfect XR application effect

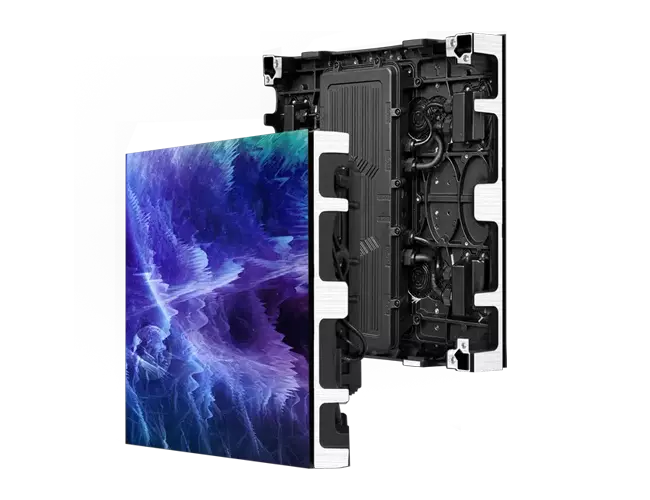

Quick and Easy Assembly

The KD Plus series products use die cast aluminum enclosures with quick locks, making installation quick and convenient. They can be used for both ground screen and vertical screen rental activities, providing multiple installation methods for flexible and convenient installation. These methods include stacking, wall mounting, and hanging splicing, which can easily meet the needs of various application scenarios.

Soft or Hard Connection

Soft or hard connection for modules, back-up power supply and receiving card available（optional）

Easy to install and Maintenance

Easy for seamless installation, fast locks available

OUTDOOR KD PLUS SERIES PARAMETER TABLE

  Model No. KD PLUS 0239 KD PLUS 0248 KD PLUE 0262
  Pixel Pitch(mm) 3.91mm 4.81mm 6.25mm
  LED Configuration SMD1921 SMD1921 SMD2727
  Pixel density(dots/m²) 65,536 43,264 25,600
  Module resolution 64x64 pixels 52x52 pixels 40x40 pixels
  Module Dimensions(WxHxD)(mm) 249.5x249.5x18 249.5x249.5x18 249.5x249.5x18
  Brightness(cd/m²)
3000(Common Anode Scheme), 5000 (Common Cathode Scheme)
  Max./Avg. Power Consumption(w)
200/100
  Operating Voltage
100-240V AC 50-60Hz
  Viewing Angle
150°/150°
  Cabinet Dimensions(WxHxD)（mm）
500.5x500.5x84
  Refresh rate
1920-7680Hz(optional)
  Protection level
IP67
  Cabinet Weight(Kg/Cabinet)
13.5
  Cabinet Material
Die-cast Aluminum
  Maximum load bearing
2000kg/m²
