K-MAT

Magical Carpet LED Display
K-MAT Series

KinglyLED's products have passed multiple authoritative qualification certifications. We provide a one-stop solution for your project and can also offer customized solutions according to your needs,Available in Pixel Pitch: 0.78mm/0.976/1.25mm/ 1.56mm/ 1.95mm/2.6mm/3.91mm

Black

Extraordinary deep blacks

Excellence

Capture every brilliance

Thickness Only 17mm

Ultra-Thin and Ultra-Light

Cool

Stay cool, enjoy more

Fast installation

Easy maintenance

Energy-saving

Energy-saving

Less consumption

EMC Class B Standard

Safe choice

Creative Shapes

Convex and concave curved Splicing

Excellent Design

  • Support customization
  • High-definition display,the minimum pixel spacing supports 0.78mm
  • Reel design,when not in use, it can be rolled up and hidden

Feature Intro

  • Ultra-light  and Ultra-thin(thickness: 17mm)
  • DC24-48V input, safety usage
  • High-end DOB solution, big viewing angle
  • Exquisite shape and foldable, small storage spaces
  • No need support bases, lay down the ground directly
  • Seamless splicing, no screw holes on the surface of module, and exquisite structure
  • 1000kg/m² load capacity
  • Built-in interactive chip, sensing speed 0.016s

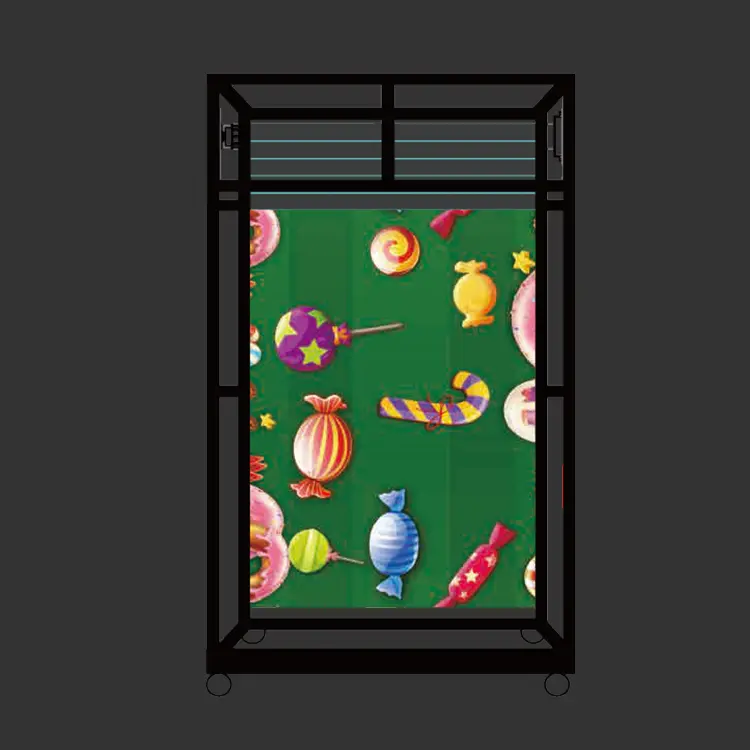

Multiple Installation Methods
Flexible Installation

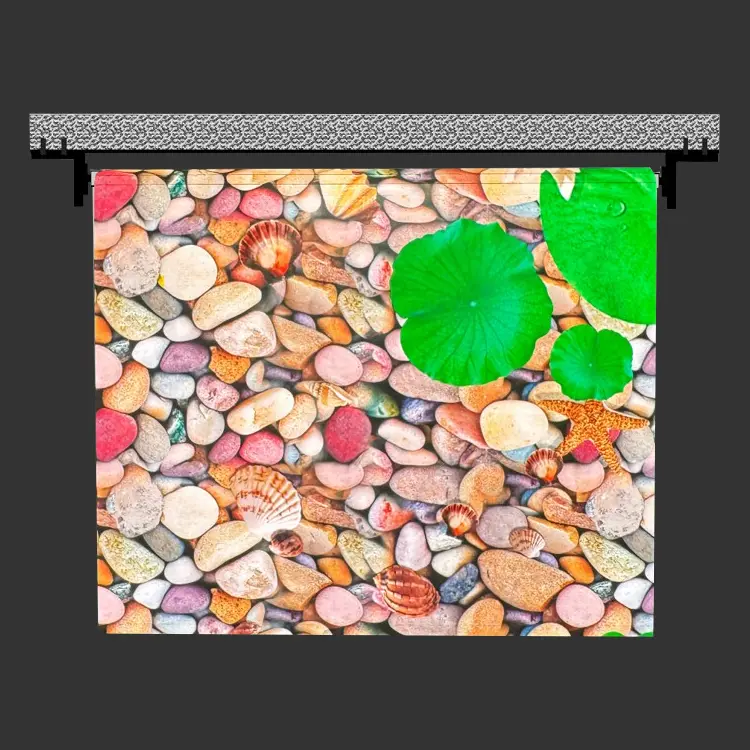

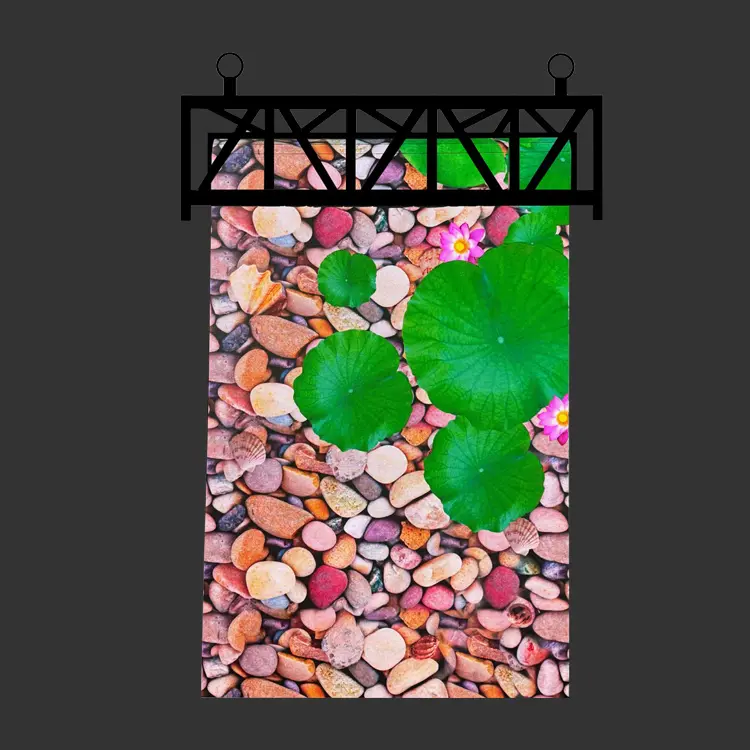

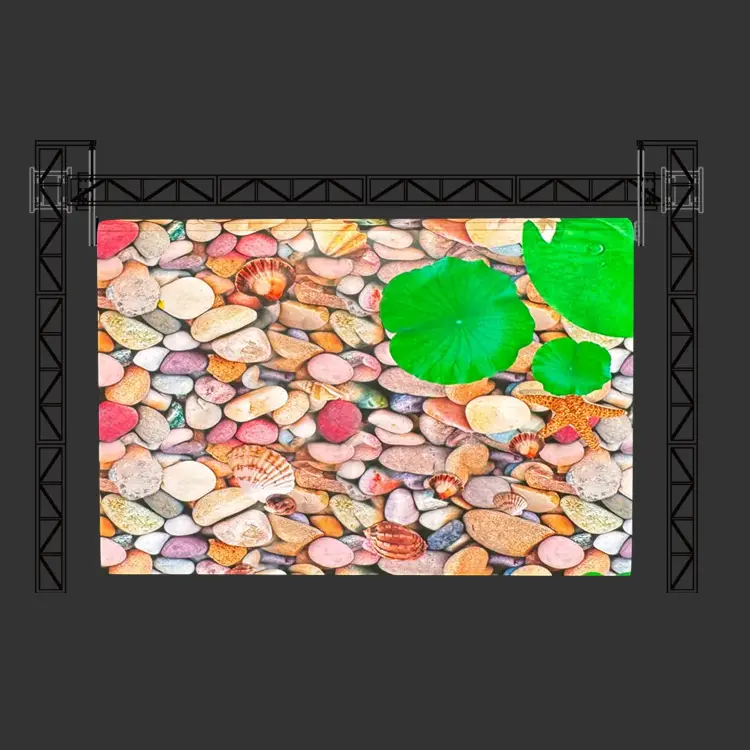

K-MAT series products offer a variety of installation methods, featuring flexible and convenient installation. These methods include ceiling fixed installation, floor tile installation, truss rental mobile installation,hanging, truss installation,Fast rental with a frame installation and tripod installation, which can easily meet the needs of various application scenarios.

LED Roll-Up Display
Patent

KinglyLED will obtain the professional certificate of LED Roll Up display invention in August 2025

Viewing Angle

140°-160° visual range,providing more fleixble and wider viewing experiences which ensures the efficiency and quality of information transmission.

K-MAT SERIES PARAMETER TABLE

  Model No. M0078 M0097 M0125 M0156 M0195 M0026 M0391
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)
  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
