Indoor KD Plus

Indoor LED Floor KD PLUS Series

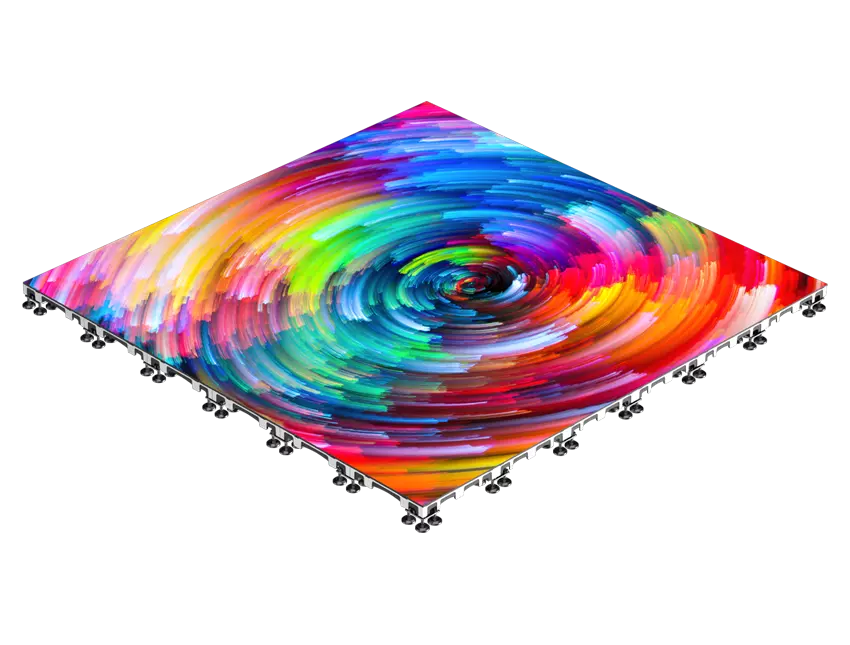

LED floor screens, also known as interactive floor screens, stage floor screens, or ground LED displays, are high-strength and high-protection LED displays specially designed for horizontal ground installation, capable of withstanding human stepping and vehicle rolling.They have completely transformed the way traditional stages, exhibition halls, and commercial spaces present their ground areas, shifting from a passive "background" to a core interactive interface for immersive experiences.

Load-Bearing

Extreme Load Capacity: 2000kg

Excellence

Capture every brilliance

Anti-Glare Matte

Anti-Glare Matte

Good display effect

Scratch-Resistant

DOB technology, scratch resistant

IP Rating

Front: IP54, Rear:IP45

Real-time multi-touch

Excellent interactive effect

EMC Class B Standard

Safe choice

Anti-slip Surface

Surface anti slip technology, safe

Excellent Anti Slip and Safety Performance

The surface must undergo anti-slip treatment (such as sandblasting, etching, or applying an anti-slip coating) to prevent pedestrians from slipping.

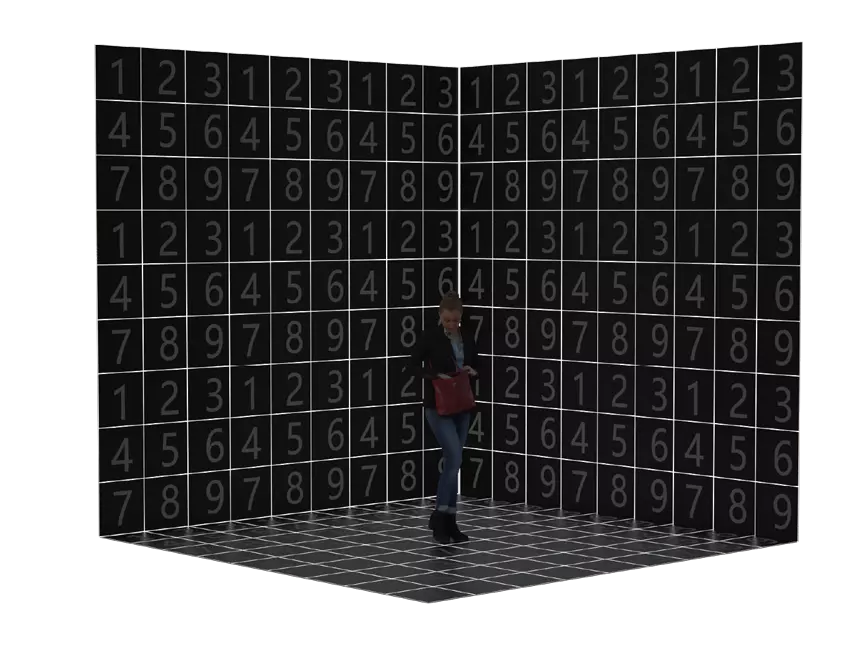

Available XR Solution

KD Plus can be installed on both ground and vertical screens, seamlessly integrating to achieve the perfect XR application effect

Quick and Easy Assembly

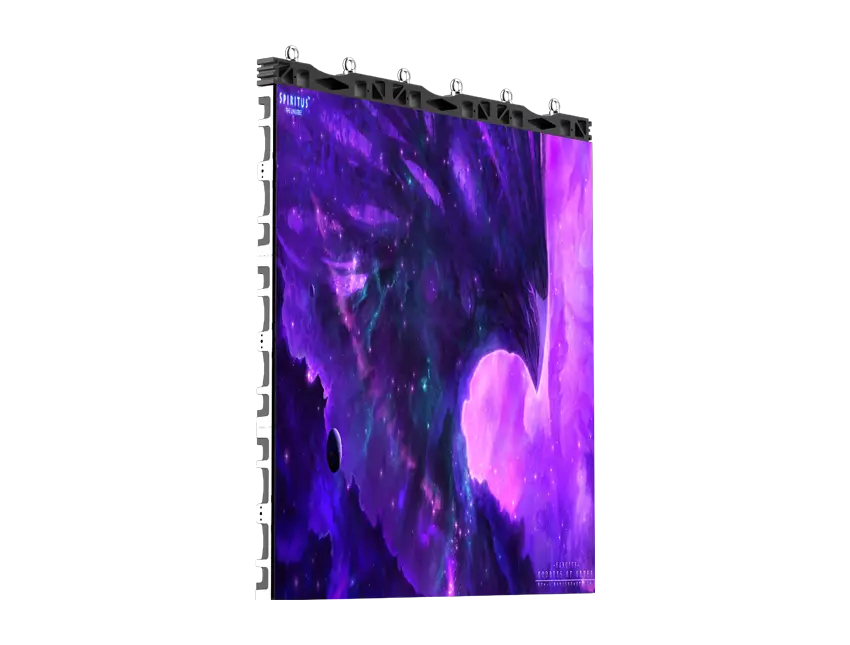

The KD Plus series products use die cast aluminum enclosures with quick locks, making installation quick and convenient. They can be used for both ground screen and vertical screen rental activities, providing multiple installation methods for flexible and convenient installation. These methods include stacking, wall mounting, and hanging splicing, which can easily meet the needs of various application scenarios.

Soft or Hard Connection

Soft or hard connection for modules, back-up power supply and receiving card available（optional）

Easy to install and Maintenance

Easy for seamless installation, fast locks available

INDOOR KD PLUS SERIES PARAMETER TABLE

  Model No. KD PLUS 0125 KD PLUS 0126 KD PLUS 0129 KD PLUS 0139 KD PLUS 0149 KD PLUS 0152 KD PLUE 0162
  Pixel Pitch(mm) 2.5mm 2.6mm 2.976mm 3.91mm 4.81mm 5.2mm 6.25mm
  LED Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
  Pixel density(dots/m²) 160,000 147,576 112,896 65,536 43,264 36,864 25,600
  Module resolution 100x100 96x96 84x84 64x64 52x52 48x48 40x40
  Module Dimensions(WxHxD)(mm) 250.85x250.85x18 250.85x250.85x18 249.8x249.8x18 249.8x249.8x18 249.6x249.6x18 249.6x249.6x18 249.4x249.4x18
  Brightness(cd/m²) 1200 1200 1200 1200 1200 1200 1200
  Max./Avg. Power Consumption(w) 200/100 200/100 200/100 200/100 200/100 200/100 200/100
  Viewing Angle
150°/150°
  Moudle size（mm）
500x500x78
  Maximum load bearing
1500kg/m²
  Refresh rate
1920-7680Hz(optional)
  Protection level
IP54/IP45
Swipe left or right to view more content
